Description

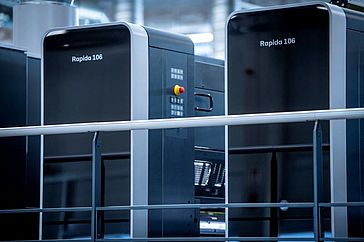

Koenig & Bauer Rapida 106
- Production speed up to 18,000 sheets/h
- Suitable for a particularly wide range of substrates
- Sidelay-free infeed DriveTronic SIS
- AniloxLoader and DriveTronic SFC
- Modern operating concept with touch panels and apps
Product Info
Uncompromising productivity and economic
With printing speeds up to 18,000 sheets/h, the Rapida 106 is a highly productive sheetfed offset press in 3b medium format. And not only that. The range of substrates is just as diverse. It ranges from thin paper printing to thick cardboard, from film to corrugated cardboard. So much flexibility is second to none.
It is also unique because of its almost unlimited variety of equipment with up to 19 printing and finishing units. Single and multiple varnishing, intermediate drying, numbering, perforating, cold foil finishing in different automation levels, printing units after varnishing – the possibilities are almost endless. Even when it comes to finishing: energy-saving ones VariDryBlue dryer, HR UV or pioneering LED UV-Technology have long been in use, right up to 4 over 4 production.
Fast-reacting measurement and control technology ensures consistent print quality with little waste. Highlights are inline quality control with QualiTronic PrintCheck, inline PDF Control with QualiTronic PDFCheck/QualiTronic PDF HighRes and the ability to measure gray balance with QualiTronic Instrument Flight.
Parallel setup processes
You can significantly reduce costly downtimes with the Rapida 106. The DriveTronic single drive technology in its entirety is a unique selling point of Koenig & Bauer. From the shaftless DriveTronic feeder to the sidelay-free DriveTronic SIS system to the coating units, this drive technology offers additional functions in addition to short makeready times.
DriveTronic SFC changes the coating plates parallel to other makeready processes. The AniloxLoader exchanges the anilox rollers from a magazine above the coating unit fully automatically. This process also takes place in parallel and is integrated into the job change program.
Top technology throughout
Regardless of whether your company operates in commercial, packaging or a special segment – the Rapida 106 will inspire you.
Gentle sheet travel with air assistance, automatically reversible perfecting with special sheet guidance for the freshly printed reverse side, preset capability – everything has been thought of. Inking units that can be disengaged reduce roller wear, the “clean printing” function allows residual ink to run off in a targeted manner and the ErgoTronic console with wallscreen leaves nothing to be desired by the operator.
Working in parallel CleanTronic-Combination washing devices for blanket, impression cylinders and rollers provide additional time savings. CleanTronic Multi is ideal for changing colors. CleanTronic UV avoids waiting times before and after cylinder washing in the UV-Print.
The production management system LogoTronic Professional integrates the Rapida 106 into the printer network.
Features
- Uncompromising productivity and running speed to maximise output
- Fast job to job transition through parallel setup processes to maximise running time
- Colour measurement of every sheet and adjustments every 10 sheets, plus the ability to measure dot gain (TVI) and gray balance, not just density
- QualiTronic PDFCheck and QualiTronic PDF HighRes monitors the printed image against the master PDF, highlighting any deviations to ensure good sheets are onward processed
- Digitalisation – Performance Reports and benchmarking
- LiveApps for press control and company-wide stores management
Specs
Standard | Optional | |
Max. sheet format | 740 x 1.060 mm | 750 x 1.060 mm, 780 x 1.060 mm |
Max. production speed | 17.000 sheets/h | 18.000 sheets/h |
Substrate thickness | 0,06 – 0,7 mm | 0,06 – 1,2 mm, 0,2 – 1,4 mm |
Printing units | 2 – 10 | 10+ |
Sidelay-free infeed DriveTronic SIS | Yes | – |
Fully automatic plate change FAPC | Yes | – |
Perfecting | – | Yes |
Simultaneous forme change DriveTronic SFC | – | Yes |
Fully automatic anilox roller change AniloxLoader | – | Yes |
CleanTronic washing systems | Yes | – |
VariDry dryer systems | – | Yes |
AirTronic delivery with dynamic sheet brake | Yes | – |
Logistics solutions | – | Yes |
ErgoTronic console with TouchTronic interface | Yes | – |
Quality measurement and control systems | – | Yes |
Remote maintenance module PressSupport 24 Sheetfed | – | Yes |
Workflow solutions for printshop networking | – | Yes |
